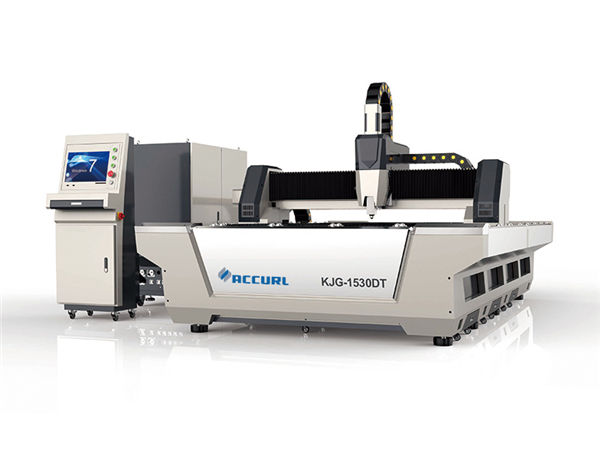

industrial precision laser cutting machine , 800w iron laser cutting machine

Detalji o proizvodu

Certifikacija: ISO9001: 2008

Uvjeti plaćanja i slanja:

Minimalna količina narudžbe: 1 set

Cijena: pregovaranje

Detalji ambalaže: drvena futrola

Vrijeme isporuke: 15 radnih dana

Payment Terms: Western Union, T/T, L/C

Sposobnost snabdevanja: 2000 kompleta

Contact Now Chat Now

Detaljan opis proizvoda

Ime proizvoda:	Laserski stroj za rezanje vlakna	Tip lasera:	Fiber laser
Laserska snaga:	500w, 800w, 1000w	Radna zona:	3000 * 1500mm
Rezna glava:	Raytools	Kontroler:	CYPCUT
Voltaža:	AC380V/60HZ/3PH	Hlađenje:	Vodeno hlađenje

Laser Cutting Machine Features

Laser za rezanje metala za prodaju prihvaća napredni laserski generator vlakana i sistem pomicanja kugličnih vijaka, može precizno rezati i bušiti metalne materijale različitih vrsta velikom preciznošću i velikom brzinom.
Budući da se laser prenosi vlaknima, nije potrebno održavati ili prilagođavati lasersku optičku putanju. Izuzetno smanjuje kvar grešaka i produžuje radni vek. Površina rezanja velikog formata udovoljava zahtjevima različitih vrsta obrade metala.

Laser Cutting Machine Advantages

- Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology.

The quality fiber laser beam results in faster cuttingspeeds and higher qualitcuts compared to other cutting solutions.

The key advantage of a fiber laser is its short beam wavelength (1064nm).

The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals.

This makes the fiber laser become a perfecttool for cutting metal sheets of stainless steel, carbon steel, mild steel, etc.

- The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser.

The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit willconsume little to no energy when not active.

- Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

- Powerful Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

Glavna konfiguracija

Predmet	Ime	Količina	Marka
Laser	vlaknasti laser	1 SET	Maxphotonics
Rezna glava	Specijalizirana glava za rezanje	1 SET	RayTools BT (Švicarska)
	Strojni krevet	1 SET	kina
	Precision Rack	1 SET	TAIWAN DINSENSE
Tijelo mašine	Precizna linearna vodilica	1 SET	TAIWAN HIWIN / TAIWAN shac
	X, Y servo i pogon	1 SET	LETRO
	Sistem reduktora	1 SET	TAIWAN DINSENSE
	kontroler	1 SET	FRANCE Schneider
	Strojni pribor za krevet	1 SET	kina
Digitalni sistem sečenja	Sistem kontrolera	1 SET	Šangajski kip / Shanghai Empower
Dodaci	Hiller	1 SET	Teyu
	Oprema za recikliranje otpada	1 SET	kina

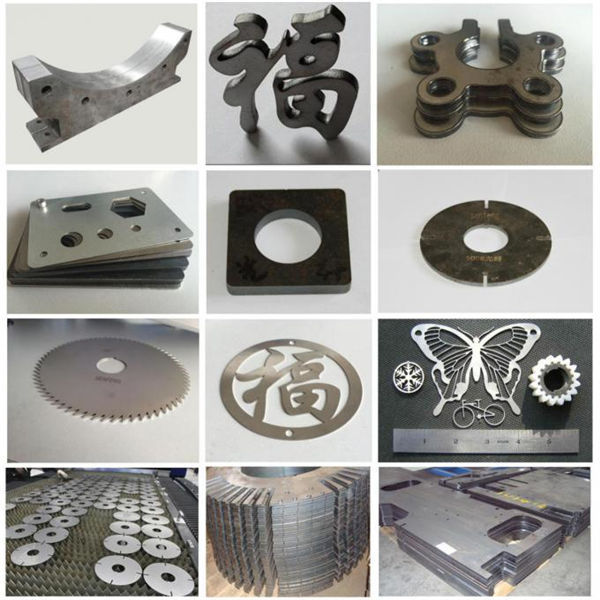

Materijali za prijavu

Vlakna laserom Oprema je pogodan za rezanje metala od nehrđajućeg čelika, mild steel ploče, Carbon Steel list, Alloy Steel Plate, Spring čeličnog lima Iron ploče, pocinčani lim, pocinčani lim, aluminijskih ploča, Bakar list, Brass list, Bronze Plate , Zlatna ploča, Srebrna ploča, Titanijumska ploča, Metalna ploča, Metalna ploča, cijevi i cijevi, itd.

Industrija aplikacija

Rise Laser Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
